MIDI Capture



Modular MIDI Capture


Pull to ground to capture note input.


Up to 128 notes per controller card.


Input cards are in 32 note blocks. Cards have screw terminal input and plug into controller card.

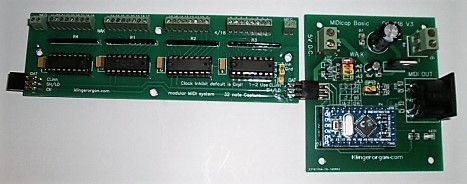

Basic MIDIcapture with one 32 note input board

Advanced MIDIcapture with one 32 note input board.

Advanced MIDI Capture, up to 128 note input, programmable channel selection.



Inverter cards available for use with positive input or photo transistors.


Price on request


Basic MIDI Capture, up to 128 notes on one selectable channel. Channel 1 to 16
