MIDIpar



   Conventional System configuration with the

   common to the magnets or solenoids, POSITIVE

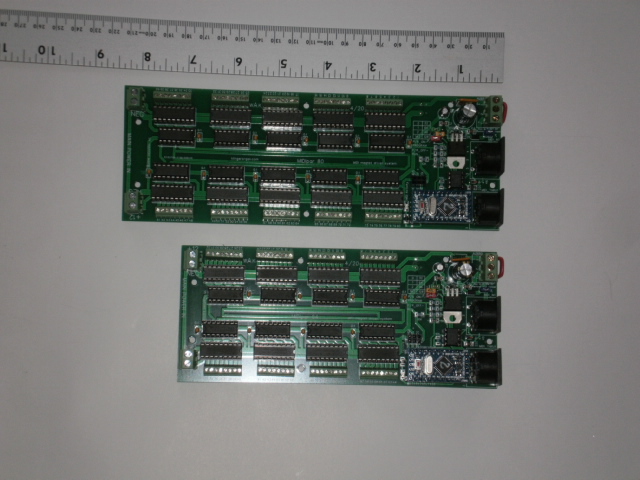

   Basic boards use ULN2803a IC's that are rated

   at 500 mA per gate, 8 gates per IC. Voltage

   up to 40v DC.


   If more than 3 outputs are on at one time, the

   current is lower.

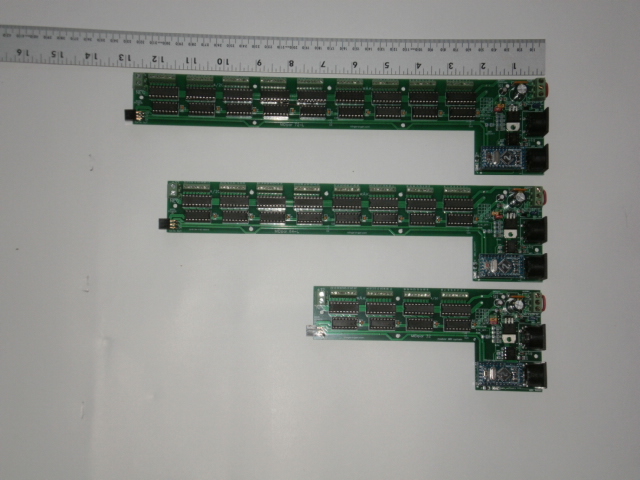

  Boards are available from 8 notes to 128 notes

  in a variety of configurations.

                                                   Price List link
